Place of Origin:
Guangdong Foshan Lishui, China
Brand Name:
TPA Housing
Certification:
ISO,SGS,BV
Model Number:
TPA-SSW2
Product Description
Product type: Steel structure warehouse
Large project light steel structure warehouse for construction site
1) Building material component list
Embedded parts | High strength bolt | M20,10.9S |
Common bolt | M20 | |
Galvanized bolt | M12 | |
Shear studs | M16 | |
Brace | M12 | |
Main steel frame | Steel column(Q235B) | HN350X175X6X9 |
Wind column(Q235B) | HN300X150X5.5X8 | |
Roof beam(Q235B) | HN350X175X6X9 HN300X150X5.5X8 | |
Roof frame beam(Q235B) | HN400*200*7*11 | |
Floor main beam(Q235B) | HN350X175X6X9 | |
Floor secondary beam(Q235B) | HN250X125X5X8 | |
Tie rod | Ø89*3.0 | |
Horizontal bracing | Ø20 | |
Column bracing | Ø20 | |
Stair | [18 channel steel + 2.3mm pattern plate | |
Partition wall column | Square tube100*2.0 | |
Wall purlin(Galvanized) | C160*50*20*2.0 | |
Roof purlin(Galvanized) | C160*50*20*2.0 | |
Connecting plate | 4mm~20mm steel sheet | |
Structure steel fabrication | ||
Ancillary material | Acetylene, oxygen, electrode | |
Resist rust | Sa2.5 | |
Painting | Alkyd paint | |
Maintenance | Roof panel | 50mm sandwich panel(steel sheet thk:0.476+0.426mm,density:80kg/m³ ) |
Roof tile | Lighting tile | |
Wall panel | 50mm sandwich panel(steel sheet thk:0.476+0.426mm,density:80kg/m³ ) | |
Partition wall panel | 50mm sandwich panel(steel sheet thk:0.476+0.426mm,density:80kg/m³ ) | |
Floor | 1.0mm floor deck | |
Toilet partition | 10mm | |
Rolling door(automatic) | W4500*H5000 | |
Steel door | W1000*H2100/W850*H2100 | |
Sandwich panel door | W5000*H3500 | |
Aluminum window (thk:1.2mm) | W250*H2000/W1130*H1000/W2000*H1000 | |
Aluminum window with security mesh(thk:1.2mm) | W500*H500 | |
Gutter | PVC | |
Down pipe | PVC110 | |
Trimming | 1.0mm galvanized /steel sheet | |
Decoration | Office floor tile | 800*800 |
Bathroom floor tile | 300*300 | |
Outdoor fence | Column: 80*80*1.5mm Zinc Steel Pipe Cross pole: 40*40*1.5mm zinc steel pipe Vertical pole: 19*19*1.2mm zinc steel pipe |
|

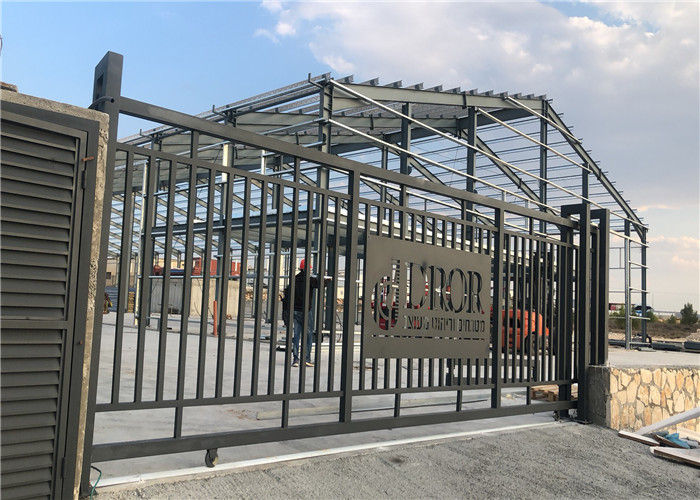

Outdoor electric gate(W:7000mm*H2000mm) | Column: 80*80*2.0mm Zinc Steel Pipe Cross pole: 50*50*1.5mm zinc steel pipe |
|
Small gate(W:800mm*H2000mm) | Column: 80*80*2.0mm Zinc Steel Pipe Cross pole: 50*50*1.5mm zinc steel pipe |
|
Closestool&wash basin | Floor-to-floor concealed closestool |

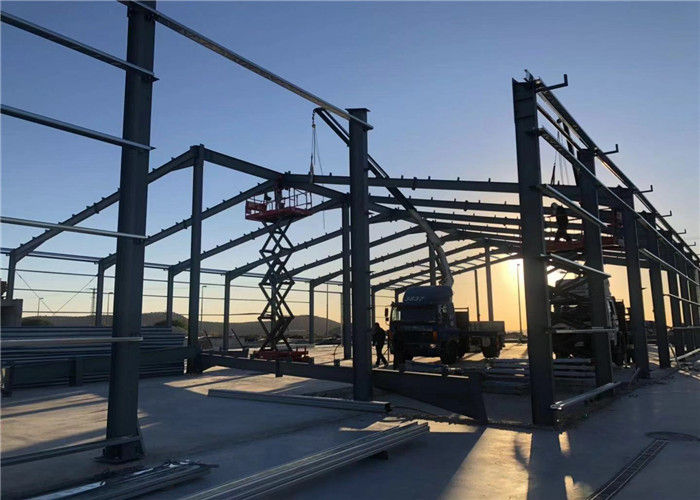

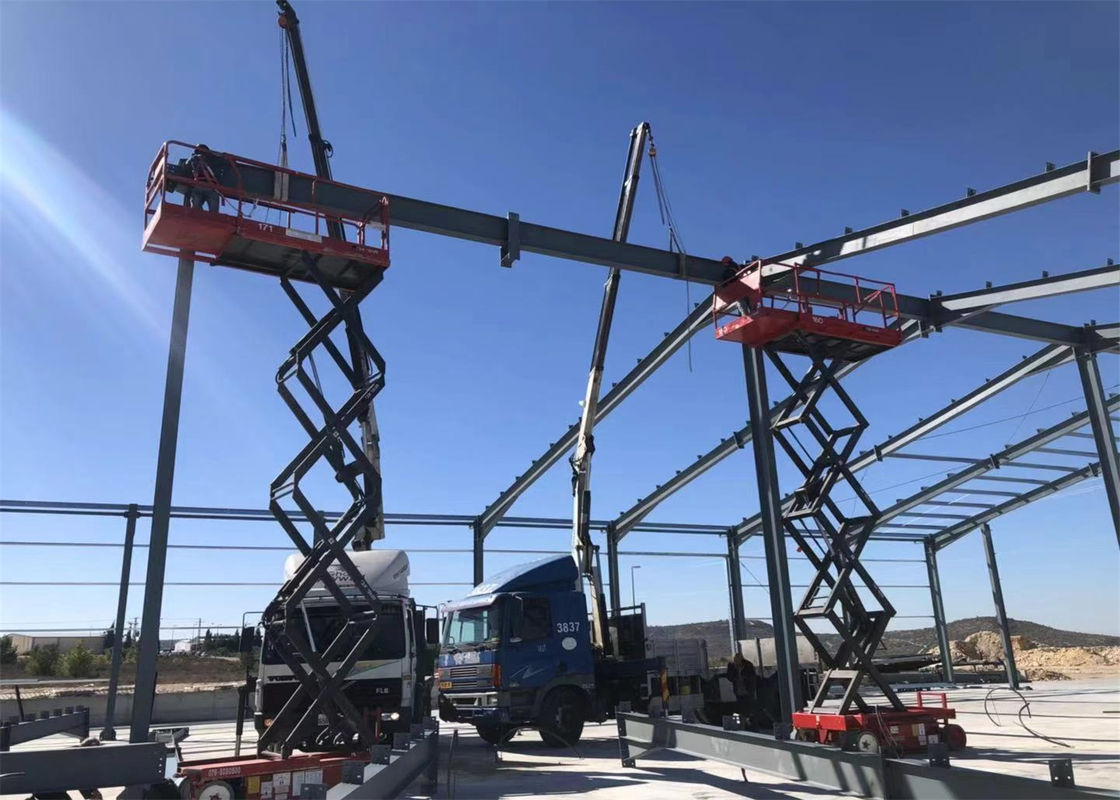

2) Product display
3)Steel Structure Building materials display
4)Steel structure warehouse plans for reference
5) Steel structure warehouse features
a. Low maintenance costs
b. Environmentally friendly, recycling.
c. Flexibility when fixing doors, windows and interior partitions
d. Steel structure construction is strong, durability and stability.
e. Steel components is resistant to termites and other destructive insects.
f. Long service life for more than 50 years
g. Fast construction ,easy installation and convenient to transport.
6) Applications
The steel structure building is widely used in the construction of buildings such as warehouses, workshops, and large factories.hangar/garage/chicken shed, exhibition hall, agricultural storage, logistic centers etc.
7) About us
Foshan TianPuAn Building Materials Technology Co.,Ltd.(TPA housing),was is founded in 2008. Since then, we have been a professional manufacturer of steel structure building,container house,prefabricated house, railings, light steel villa, sandwich panel and profiled steel with ISO9001&SGS certification. We have two production workshop(Lishui town/Gaoming town)with total area covered 20,000square meter plant and equipped an automatic spraying line and automatic welding machine.
8) Why choose us
1- Customized design service
2- Quality Assurance Service
* Safety packing
* Insurance services
* Inspection before shipment
3- After-sales service
* Engineer guide on site
* Installation team service
* Email/phone call communication
We would love to achieve a longer cooperation with you!
