Floor Deck Light Steel Frame Construction Prefab Pedestrian Bridge Between Two Buildings

Floor Deck Light Steel Frame Construction Prefab Pedestrian Bridge Between Two Buildings

structural steel roof framing

industrial steel construction

Place of Origin:

Guangdong Foshan Lishui, China

Brand Name:

TPA Housing



Model Number:


Contact Us
Request A Quote
Product Details
Q235 Q345 Low Carbon Steel
Product Name:
Light Steel Structure Frame,pedestrian Bridge
Life Span:
Steel Frame About 50 Years
Structural Steel Fabrication:
Payment & Shipping Terms
Minimum Order Quantity
50 square meters
Packaging Details
In bulk
Delivery Time
5-8 work days
Payment Terms
T/T, L/C at sight
Supply Ability
100000 square meters per month
Product Description

Floor Deck Light Steel Frame Pedestrian Bridge Between Two Buildings


Pedestrian bridges have long been constructed out of wood, and more recently concrete. Nowadays, there is a growing trend of fabricating the pedestrian bridge with the help of structural steel.


1. What is steel structure?


Steel structure is a metal structure which is made of structural steel* components connect with each other to carry loads and provide full rigidity. Because of the high strength grade of steel, this structure is reliable and requires less raw materials than other types of structure like concrete structure and timber structure.

In modern construction, steel structure is used for almost every type of structure including heavy industrial buildings, multi-storey buildings, equipment support systems, infrastructure, bridges, towers, airport terminals, etc.
2. Advantage of steel structure pedestrian bridge

1). Lighter than Wood

While steel is more dense than wood, the amount of steel used to create the bridge in terms of I-Beams is less than the amount of wood used for the same construction purposes. This means the overall steel structure is lighter than a bridge made of wood. The lighter load helps save money on shipping costs and simplifies the design and construction process for the bridge.


2). Easier Assembly

The steel trusses come fully formed from the shop. They need only be affixed to the desired location with the help of nuts and bolt. Assembling the lighter steel bridge parts is a quicker and easier process than if the construction material was wood or concrete.

3). Environment Friendly

Most steel is made of recycled material. It can be recycled at the end of its lifetime. Hence, making use of steel for your bridge is the environmentally responsible choice instead of chopping down more and more trees for every new bridge.

3. Basic Design Requirements: design Load: (very important)
1. Snow load:
2. Wind load:
3. Seismic magnitude:
4. Middle Column allowed or not:
5. Project location:
6. Length (side wall, m):
7. Width (end wall, m):
8. Wall Height (eave, m):
9. Mezzanine or not? And usage:
4. A steel structure building can also be used for:
1) Industrial Buildings
2) Manufacturing Facilities
3) Warehouses
4) Construction Equipment Storage
5) Machinery Storage
6) Tool Storage
7) Warehouse Expansion
8) & More, tell us about your needs here!


5. Drawings & Quotation:
1) Customized design is welcomed.
2) As long as you like, we can design and provide drawings for you.
3) In order to give you an exactly quotation and drawings, please let us know length, width, eave height and local weather. We will quote for you promptly.


6. Material list component


Embedded parts M30
High strength bolt M20, 10.9s M16,8.8S
Main beam(Q345B) HN800X300X14X22
Secondary beam(Q235B) HN200X100X4.5X7, [8 steel channel
Connecting plate 3~12mm
Checkered Steel Plate 3.5mm
Fence 1.2m high zinc steel guardrail
Structure steel fabrication+Sanding + Paint Acetylene, oxygen, electrode, Sa2.5

7.Loading pictures reference
Door and window will packed safety to prevent damage. We will reponsible for all missing components and wrong parts. We will provide insurance services for shipment to avoid any mistakes.

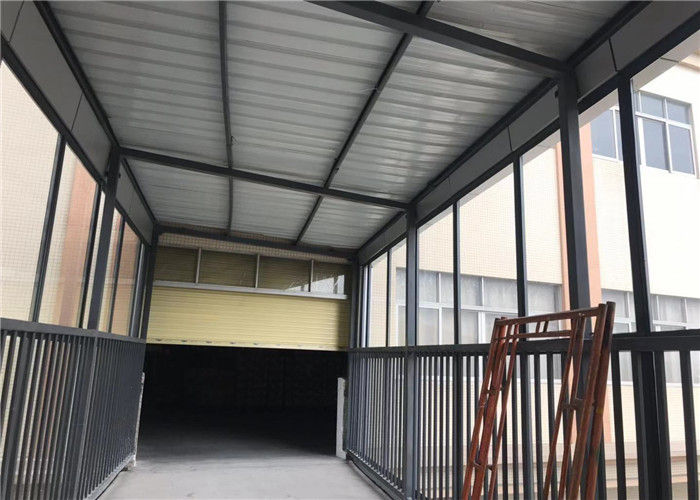

Floor Deck Light Steel Frame Construction Prefab Pedestrian Bridge Between Two Buildings 0
8. Steel Structure Building materials and accessories

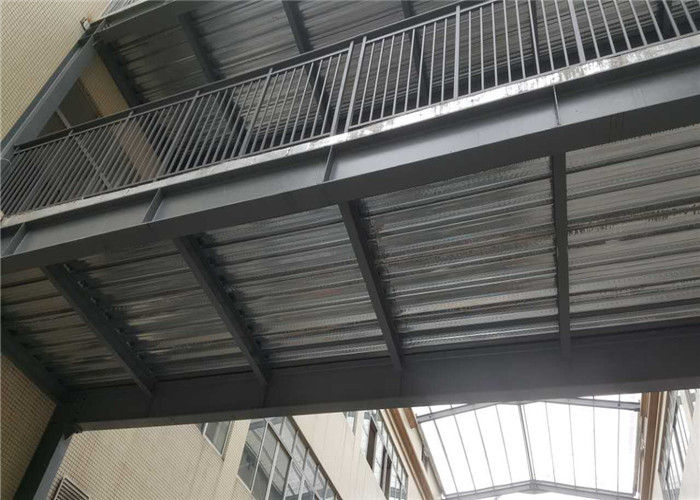

Floor Deck Light Steel Frame Construction Prefab Pedestrian Bridge Between Two Buildings 1

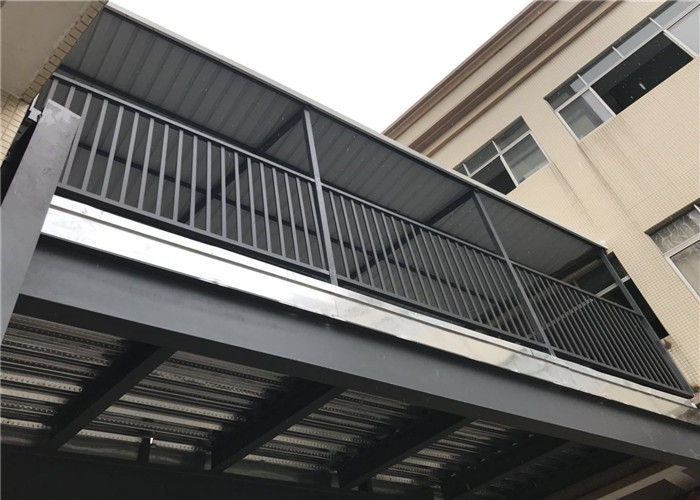

Floor Deck Light Steel Frame Construction Prefab Pedestrian Bridge Between Two Buildings 2
