High Rise Durable Prefab T House Dormitory Building For Worker/School
Product type: Prefab Steel House
Product description
Steel structure homes offer several advantages over more typical approaches to homebuilding. Its superior materials and fully engineered design make it more durable, economical, and environmentally responsible.
Prefabricated T house is made of light steel structure for its mainframe and sandwich panel for wall and roof. The structure is connected by bolts and the wall is fixed with rivets. The stuffing of the sandwich panel can be polyurethane (PU), rock wool, and polystyrene (EPS), according to specific climate conditions.
Material List
Name of material | Specification and material |
Expansion bolt | M16 |
Galvanized bolt | M12 |
Self-tapping nail | M5 |
Steel column(Q235B) | square tube 100*3.0 |
Steel column(Q2355B) | square tube 80*40*2.0 |
Roof column(Q235B) | square tube 80*3.0 |
Horizontal support | L40*3.0 |
Connecting plate | |
Roof purlin(Galvanized) | C80*40*20*1.8 |
Roof tile | 50mm EPS sandwich panel+Resin tile |
Outside wall panel | 100mm fiber cement board |
Outside wall cladding | 9mm fiber cement board |
Interior wall | 75 light gauge steel frame+6mm Calcium silicate board (including glass wool) |
Floor tile | 600*600 |
Toilet ceramic tile | 300*300 |
Ceiling | PVC gypsum board |
Gutter | PVC |
Downpipe | PVC |
Trimming | 1.0mm galvanized steel sheet |

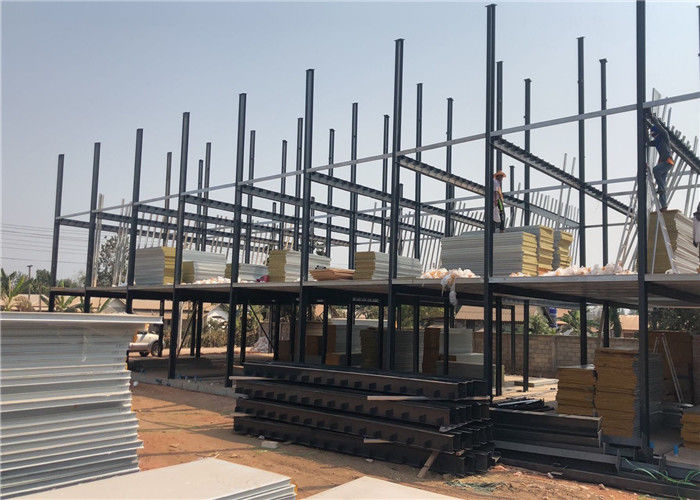

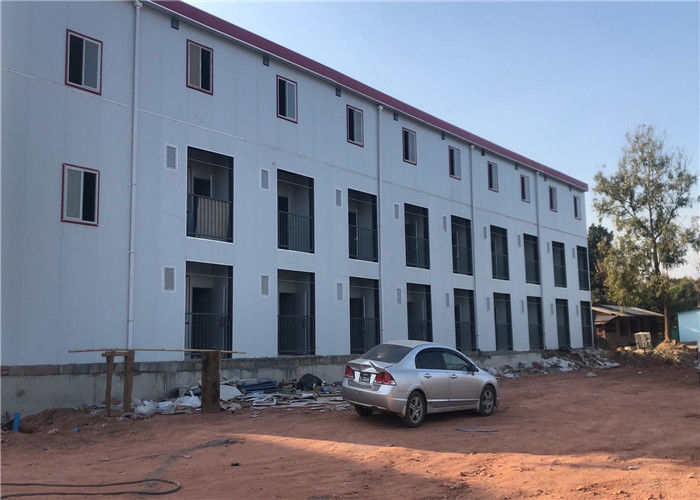

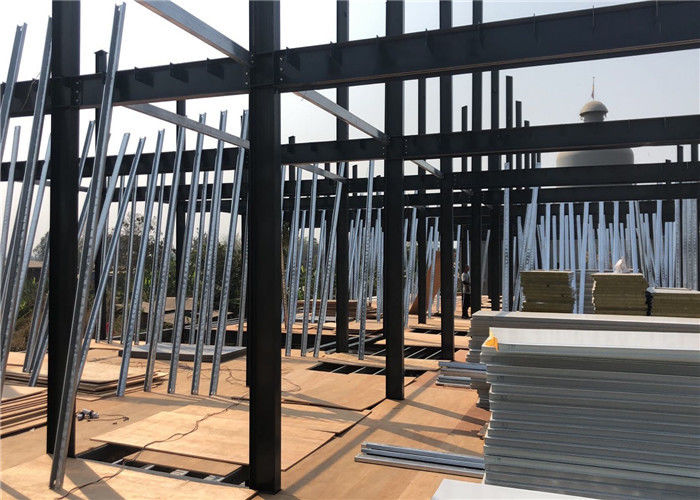

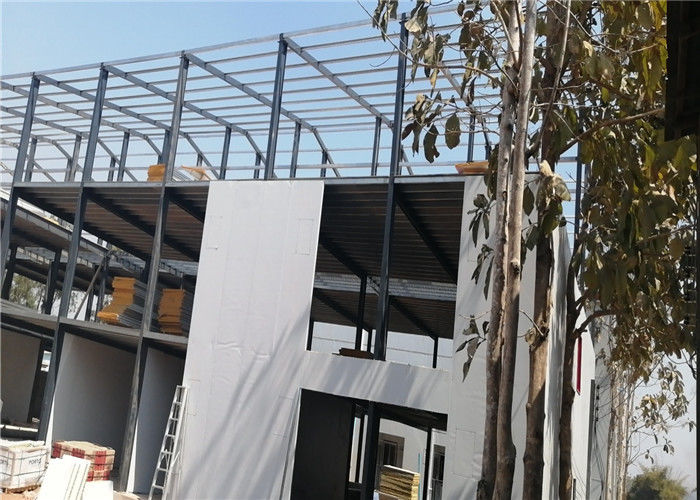

3 Floor Prefab Dormitory House Project Display
Steel Prefab T House Description
1. PVC vinyl, Plywood, wooden floor, carpet, ceramic tiles flooring system etc.
2. Aluminum sliding door, steel door
3. Aluminum sliding window, PVC window.
4. The service life can be more than 10 years.
5. Easy to assemble and disassemble
6. Environmental protection: recycling use
7. This house is widely used as a temporary office, temporary hospital, family house, dormitory, canteen and so on.
Applications
1) Residence
2) Tourist and holiday house
3) Family house
4) Government residential project
5) Real estate development project
6) Constructions for other purposes
About us
TianPuAn Building Materials Technology Co., Ltd., also known as TianPuAn Prefab House Co. Limited starts is founded in 2008. Since then, we have been a professional manufacturer of steel structure building, container house, prefabricated house, railings, light steel villa, sandwich panel, and profiled steel with ISO9001&SGS certification. We have two production workshops with a total area of 20,000sqare meters plant and equipped an automatic spraying line. Our capacity is about 1000,000 square meters of annual output.
For nearly a decade, we have been positioned our business for the domestic market and earned waves of customers for stable purchases. From these two years, we begin our overseas business. Luckily, we have a good team who profession in design, installation and export. We believe on the basis of what we have done domestically, we can do better container houses, steel structures, railings, prefab houses, light steel villas around the world.
Drawings & Quotation
1) Customized design is welcomed. As long as you like, we can design and provide drawings for you.
2) Length (sidewall, m)?
3) Width (end wall, m)?
4) Wall Height (eave, m)?
5) Middle Column allowed or not?
6) Project location?
7) Snow load?
8) Wind load?
9) Seismic magnitude?
10) Mezzanine or not? And usage?
Products & Service Scope
Design& Engineering service, steel building, space frames, portable cabins, tubular steel structures, basic building elements (built-up welded H-section, hot-rolled H-section, channel, steel column, steel beam), standard frames, secondary framing, roof & wall materials, tempcon (sandwich) panels.
Market
Products have been exported to North America, the Middle East, Africa, Asia, and other countries and regions.
Contact us today to discuss your steel framing kits for the custom home project!
