Domestic Steel Structure Sheds Building Large Prefab Warehouse And Workshops
Product description
The steel building is a light steel structure product, the main structure is cold-formed thin-wall steel component by bolt connection, one unit can achieve about 30 meters in span, and it could be also combined with another unit by span each other, to achieve more than span space. Comparing with the traditional steel construction, it owns simple architecture, low-cost material, small dimension transport, steel structure lifespan can be up to 50 years, it can be used repeatedly.
The steel structure is widespread, it can be used as small and medium-sized factories, steel warehouses, steel workshops, steel storage, exhibition halls, large and medium-sized restrooms, repair shops, etc.
Product material list
| Name of material |
Specification and material |
| Embedded parts |
M30 |
| High strength bolt |
M20,10.9S |
| Common bolt |
M16 |
| Galvanized bolt |
M12 |
| Shear nail |
M16 |
| Steel column(Q345B) |
HN600X200X10X15 |
| Steel column(Q345B) |
HN300X150X6.5X9 |
| Roof column(Q345B) |
HN350X175X6X9 |
| Floor main beam(Q345B) |
HN500X200X9X14 |
| Tie rod |
89*3.0 |
| Horizontal support |
16 |
| Roof purlin(Galvanized) |
C180*60*20*2.0 |
| Wall purlin(Galvanized) |
C180*60*20*2.0 |
| connecting plate |
6mm～20mm steel sheet |
| Roof Tile- Rock wool Sandwich panel |
50mm color steel thickness: 0.426 |
| Outside wall panel --Rock wool Sandwich panel |
50mm color steel thickness: 0.426 |
| Gutter |
2.0mm Galvanized Gutter |
| Downpipe |
110PVC |
| Trimming |
1.0mm galvanized steel sheet |

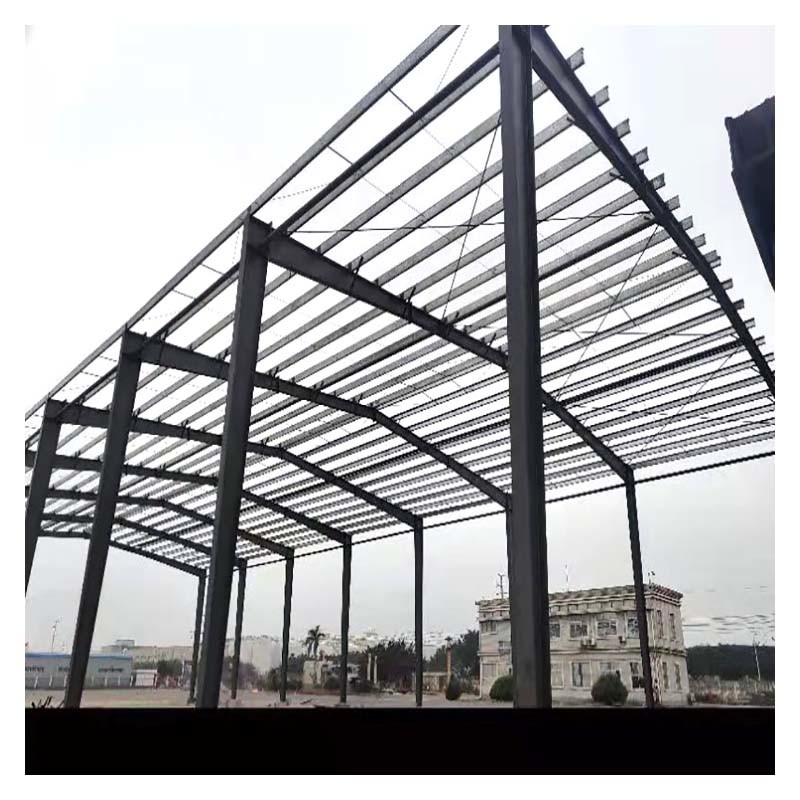

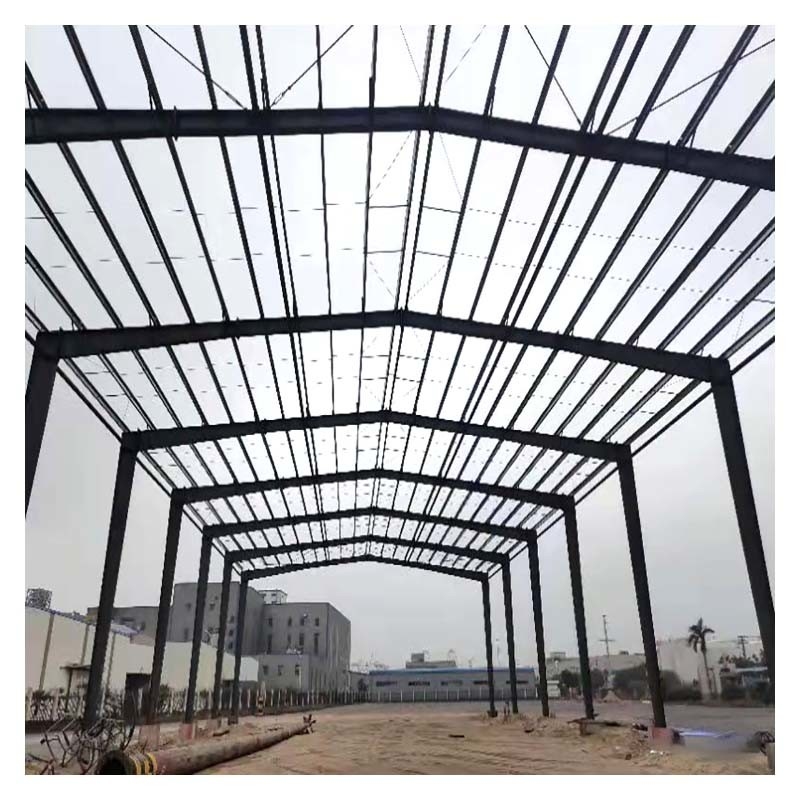

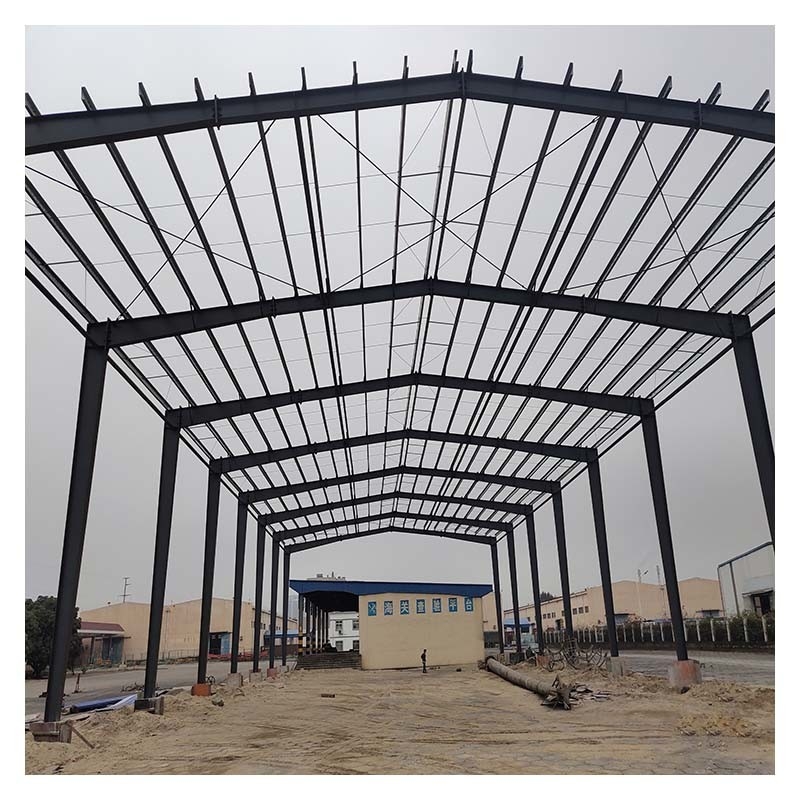

Steel structure building materials display

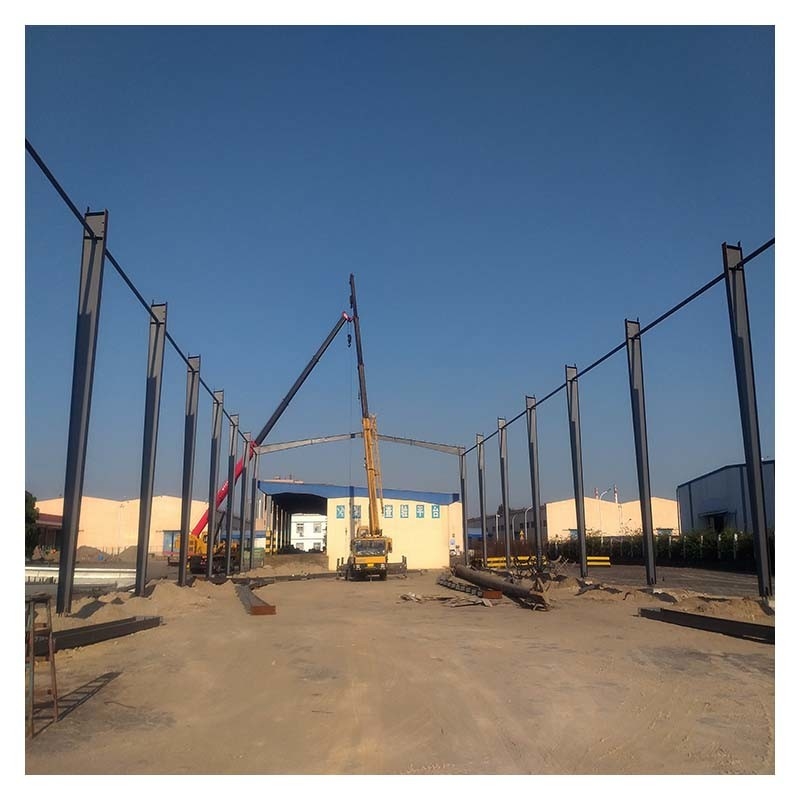

Installation
About us
TianPuAn Building Materials Technology Co., Ltd., also known as TianPuAn Prefab House Co. Limited is founded in 2008. Since then, we have been a professional manufacturer of steel structure building, container house, prefabricated house, railings, light steel villa, sandwich panel and profiled steel with ISO9001&SGS certification. We have two production workshops with a total area of 20,000sqare meter plants and equipped with an automatic spraying line. Our capacity is about 1000,000 square meters of annual output.
For nearly a decade, we have been positioned our business for the domestic market and earned waves of customers for stable purchase. From these two years, we begin our overseas business. Luckily, we have a good team that profession in design, installation and export. We believe on the base of what we have done in domestic, we can do better container houses, steel structures, railings, prefab houses, light steel villas around the world.
Our service
1- Customized design service
2- Quality Assurance Service
* Safety packing
* Insurance services
* Inspection before shipment
3- After-sales service
* Engineer guide on site
* Installation team service
* Email/phone call communication
Free steel building quote
Please provide as much information as possible about your future building plans and an online free price quote will be prepared for you immediately. Be sure and include your building site’s location in order to generate an accurate quote. If you are not sure of your building plans, leave your contact information and a qualified representative at TPA housing will contact you to discuss your needs. Your representative will work with you to meet any design or budget challenge and begin working towards a solution to simplify the building process.
Payment Terms
1) Payment: L/C at sight or by T/T(30% prepaid as deposit, the balance 70% before shipment)
2) Delivery time: 15~30 days, usually as customers' order
Market
Products have been exported to North America, the Middle East, Africa, Asia and other countries and regions.
