Maldives Steel Structure 7-Story Building With Insulated Panels

Maldives Steel Structure 7-Story Building With Insulated Panels

7-Story Maldives Steel Structure

Maldives Steel Structure With Insulated Panels

Place of Origin:

Foshan, Guangdong

Brand Name:

TPA Housing

Certification:

ISO,SGS,BV

Model Number:

TPA-ST085

Contact Us
Request A Quote
Product Details
Color:
Up To Customers' Requirement
Application:
Mulit-floor Building
Life Span:
Steel Frame About 50 Years
Type:
Light Steel Structure Frame
Roof & Wall:
EPS Sandwich Panel
Thickness:
50 Mm
Dimension:
Up To Customers' Requirements
Anti-Corrosion Treatment:
Available
Window Material:
PVC/Aluminum Alloy
Material:
Q235 Q345 Low Carbon Steel
Insualtion:
50/75mm Rockwool/EPS/PU Sandwich Panel
Payment & Shipping Terms
Minimum Order Quantity
1 units
Price
Negotiable
Packaging Details
in bulk
Delivery Time
5-8 work days
Payment Terms
T/T, L/C
Supply Ability
100000 square meters per month
Product Description

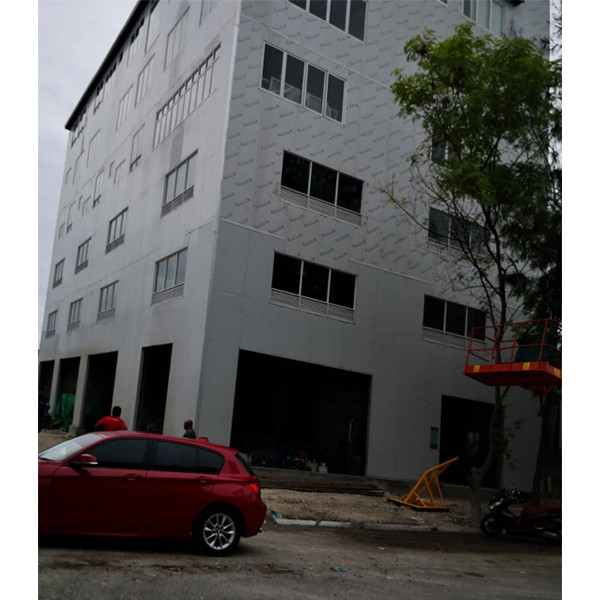

Maldives Steel Structure 7-Story Building With Insulated Panels

Product type: light steel structure building


Modern construction with its innovative use of insulated panels and metal building materials.The main material of "Light Steel Villa" is light steel keel composed of hot-dip galvanized steel strips through cold rolling technology. After precise calculation and the support and combination of auxiliary parts, it has a reasonable bearing capacity to replace traditional houses.
This steel structure is versatile and can be adapted to various industries, from hospitality to commercial and residential use.



 Maldives Steel Structure 7-Story Building With Insulated Panels 0Maldives Steel Structure 7-Story Building With Insulated Panels 1Maldives Steel Structure 7-Story Building With Insulated Panels 2Maldives Steel Structure 7-Story Building With Insulated Panels 3
Maldives Steel Structure 7-Story Building With Insulated Panels 4
Production Characteristic
- Steel structures provides time saving.
- Steel construction flexible tenant improvements
- The prefabricated or modular building on job sites anywhere.
- Concurrent construction phases reduce the project schedules.
- Resource-efficient practices produce less waste and less impact on the environment.

Materials component

Anchor bolt M20
High strength bolt M20, 10.9s
Shear nail M16
Common bolt M20
Brace M12
Tie rod Ø12
Column(Q345B) Square tube250*250*10*10 Square tube250*250*5*5
Roof beam(Q345B) HN340X250X9X14
Roof frame beam(Q345B) HN294X200X8X12
Floor main beam(Q345B) HN294X200X8X12
Floor secondary beam(Q345B) HN244X175X7X11
Staircases(Q235B) H200X200X6X8+5mm chequered plate
Stair beam(Q235B) H300X200X6X8
Roof purlin C140X60X20X3.0
Connecting plate 3~8mm
Roof tile 75mm rock wool, color sheet both sides 0.426mm
Wall panel 75mm rock wool, color sheet both sides 0.426mm
Floor deck 1.0mm
Steel door 900*2100
Aluminum windows 2000*1500
Zinc steel handrails Square tube80X40+40+30+20
Trimming 1.0mm galvanized sheet, color steel sheet

Maldives Steel Structure 7-Story Building With Insulated Panels 5

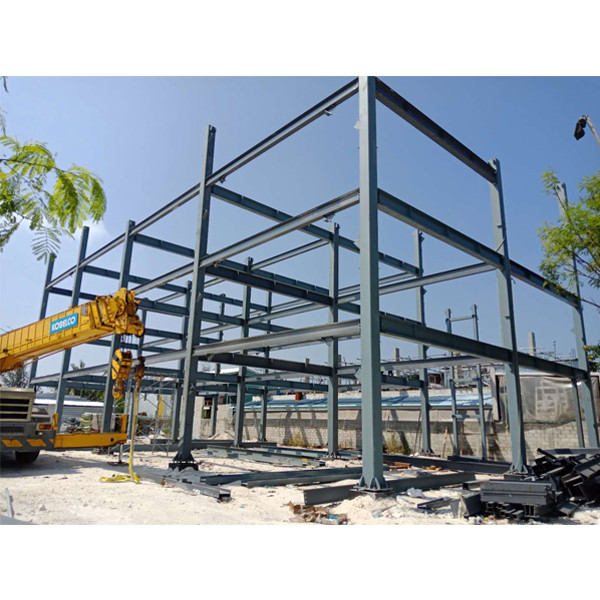

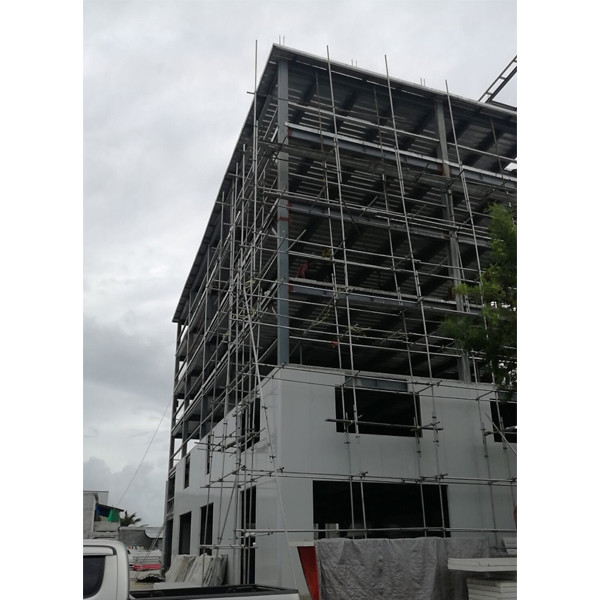

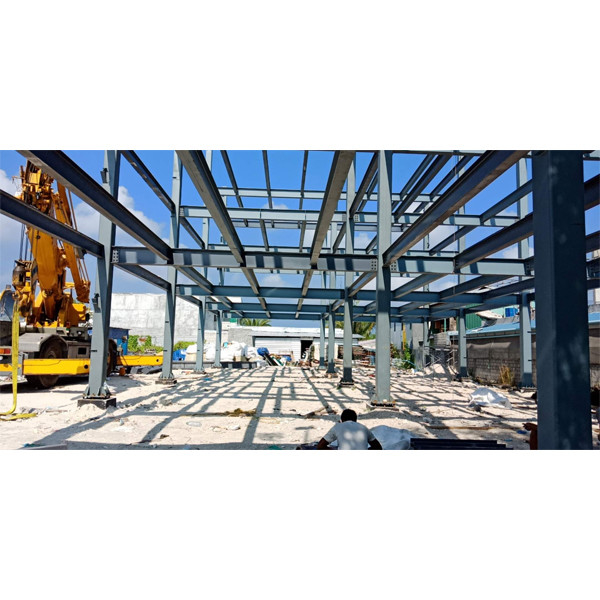

Installation disply
Maldives Steel Structure 7-Story Building With Insulated Panels 6Maldives Steel Structure 7-Story Building With Insulated Panels 7

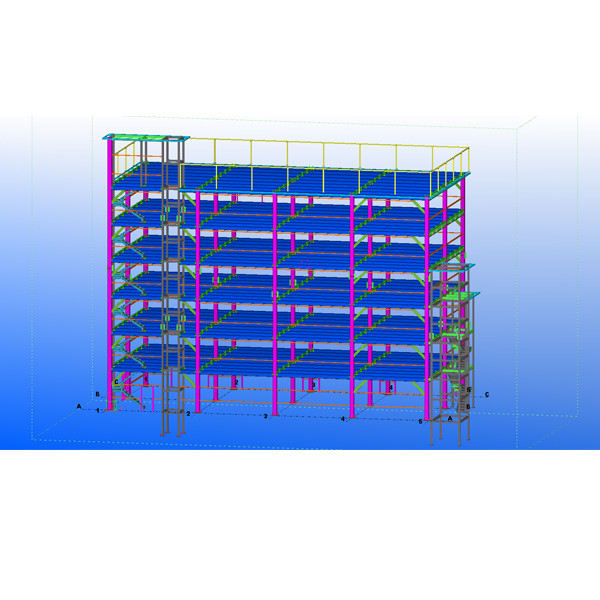

Drawings & Quotation

1) Customized design is welcomed. As long as you like, we can design and provide drawings for you.
2) Length (side wall, m)?
3) Width (end wall, m)?
4) Wall Height (eave, m)?
5) Middle Column allowed or not?
6) Project location?
7) Snow load?
8) Wind load?
9) Seismic magnitude?
10) Mezzanine or not? And usage?
Maldives Steel Structure 7-Story Building With Insulated Panels 8
