Large Span Light Steel Structure Industrial Workshop With High Strength Steel Materials
Product Description
Product type: steel workshop buildings
Prefab metal workshop buildings offer the opportunity to easily customize many aspects of your steel workshop: color, trim, roofing panels, doors and more. We will work with you to answer your questions, determine your needs and create a design to fit all your requirements.
Product material parameter
| Anchor bolt | M20 |
| High streng bolt | M20, 10.9s |
| Shear nail | M16 |
| Common bolt | M20 |
| Brace | M12 |
| Tie rod | Ø12 |
| Column(Q345B) | Square tube250*250*10*10 Square tube250*250*5*5 |
| Roof beam(Q345B) | HN340X250X9X14 |
| Roof frame beam(Q345B) | HN294X200X8X12 |
| Floor main beam(Q345B) | HN294X200X8X12 |
| Floor secondary beam(Q345B) | HN244X175X7X11 |
| Staircases(Q235B) | H200X200X6X8+5mm chequered plate |
| Stair beam(Q235B) | H300X200X6X8 |
| Roof purlin | C140X60X20X3.0 |
| Connecting plate | 3~8mm |
| Roof tile | 75mm rock wool,color sheet both sides 0.426mm |
| Wall panel | 75mm rock wool,color sheet both sides 0.426mm |
| Floor deck |
1.0mm |
| Steel door |
900*2100 |
| Aluminum windows | 2000*1500 |
| Zinc steel handrails | Square tube80X40+40+30+20 |
| Trimming | 1.0mm galvanized sheet, color steel sheet |
Advantage of steel structure construction
Following are a list of advantages of steel structure construction offers:
1. Steel is a highly durable metal. It can withstand a considerable amount of external pressure. Hence, steel structures are earthquake resistant whereas concrete structures are brittle. Concrete is not as resistant as steel.
2. Steel structures have a good load carrying capacity unlike concrete structures, which have a low load carrying capacity.
3. Steel is a tensile metal. It has a high strength to weight ratio. Steel structures weigh 60% lesser than concrete.
4. Steel structures can be made without a foundation but this is not applicable to concrete structures as they are heavy.
5. The construction process is faster with steel structures as they are easy to erect. This contributes to faster project completion. On the other hand, concrete construction is time-consuming.
6. Having a good scrap value also makes structural steel a better option than concrete which has practically no scrap value.
7. Steel structures can be easily fabricated and mass produced. They are so versatile that they can be easily assembled, disassembled and replaced. Steel structures can be modified even for last minute changes.
8. Another advantage of steel structures is that they can be constructed off-site by professional steel fabricators and then assembled on site.
9. Steel structures are an eco-friendly option as they are easily recyclable. This means you get to save money in waste management.
10. Lastly, steel structures are easy to transport as they are lightweight. Steel structure construction is a safe option, there are no health hazards of using steel structures in construction.
Price
Basic Design Requirements: design Load (very important)
1. Snow load:
2. Wind load:
3. Seismic magnitude:
4. Middle Column allowed or not:
5. Project location:
6. Length (sidewall, m):
7. Width (end wall, m):
8. Wall Height (eave, m):
9. Mezzanine or not? And usage:
Steel structure frame building benefit
* Wind resistance
The section steel structure has the advantages of light weight, high strength, good overall rigidity and strong deformability. The building's self-weight is only one fifth of that of the brick-concrete structure. It can withstand the hurricane of 70 meters per second, so that life and property can be effectively protected.
* Safty and comfort
The light steel wall adopts high efficiency and energy saving system, which has breathing function and can adjust indoor air dry and humidity. The roof has ventilation function, which can form a flowing air room over the interior of the roof, and ensure the ventilation and heat dissipation demand of the interior of the roof.
* Quick installation
All dry work construction is not affected by environmental season. A building of about 300 square meters can complete the whole process from foundation to decoration in only 5 workers and 20 working days.
Drawings & Quotation:
1) Customized design is welcomed.
2) As long as you like, we can design and provide drawings for you.
3) In order to give you an exactly quotation and drawings, please let us know length, width, eave height and local weather. We will quote for you promptly.

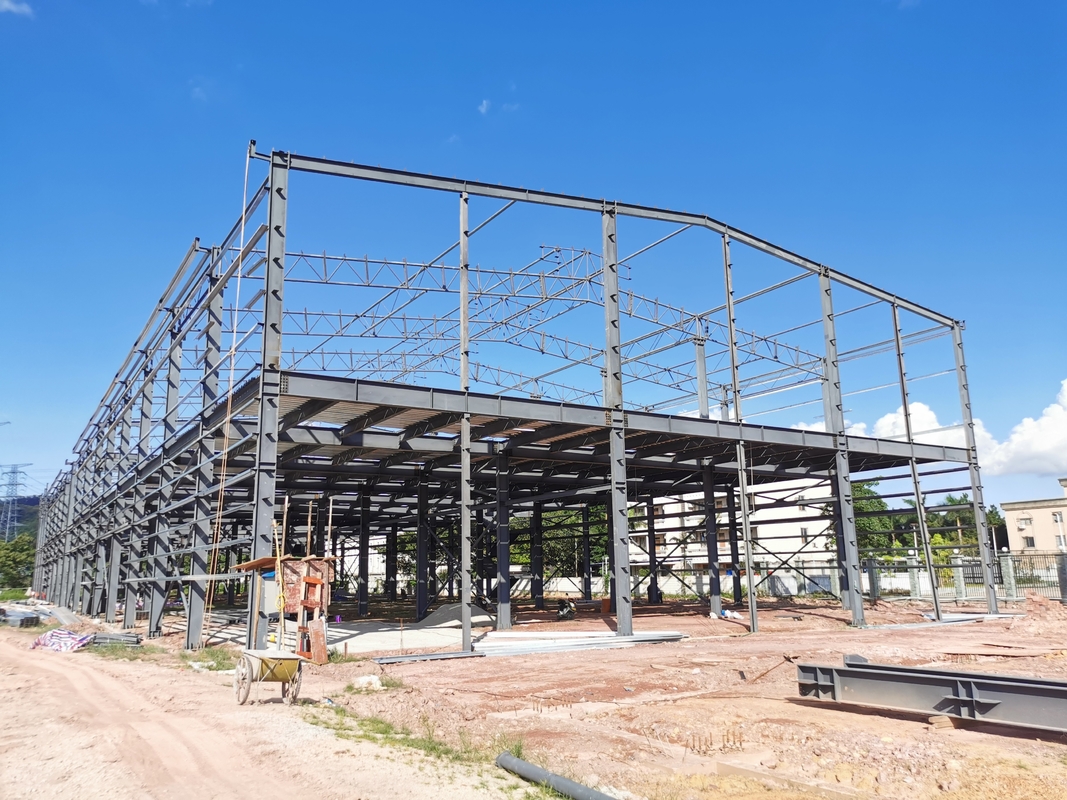

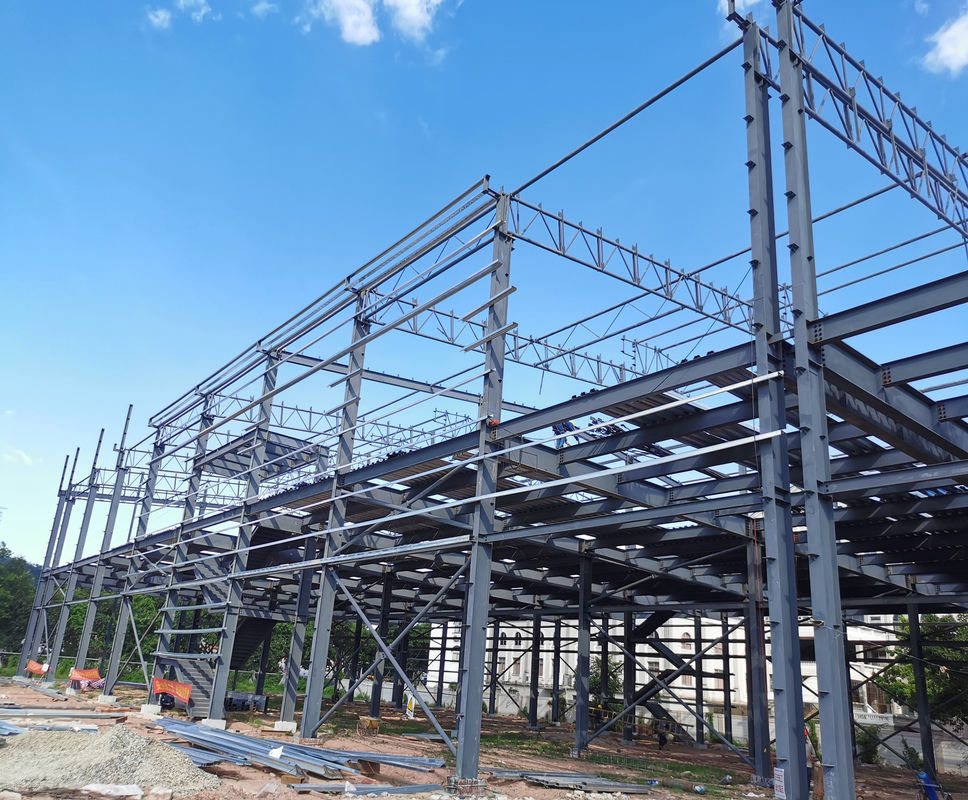

Product display
About us
Foshan TianPuAn Building Materials Technology Co., Ltd. (TPA housing),was is founded in 2008. Since then, we have been a professional manufacturer of steel structure building, container house, prefabricated house, railings, light steel villa, sandwich panel and profiled steel with ISO9001&SGS certification. We have two production workshops (Lishui town/Gaoming town)with a total area covered 20,000square meters plant and equipped an automatic spraying line and automatic welding machine.
Our services
1. Design
Designed to meet required loads and codes for your area.
2.Factory Direct Advantage
Shipped direct from our factory.
3.Service
Dedicated support from first phone call to final bolt of assembly.
4. Private manufacturing services(OEM)
We can manufacture and deliver high quality metal building system under your brand name.
5.Private Label Services
Promote your company name and brand as a top resource for cost-effective, quality metal buildings.
